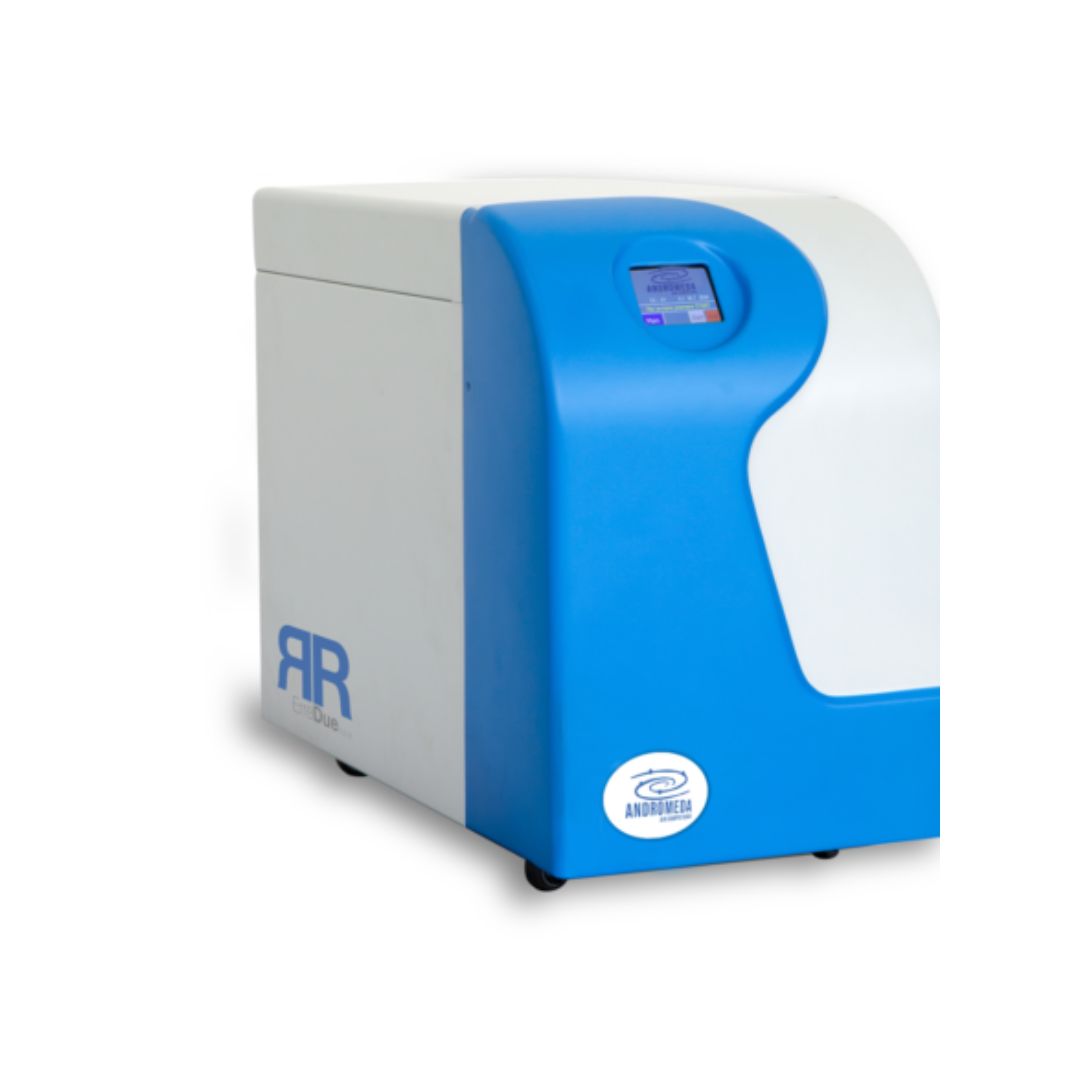

    THE ANDROMEDA OIL-FREE COMPRESSOR
    PRODUCES COMPRESSED AIR AUTONOMOUSLY



    ANDROMEDA air compressors are designed as a power
    supply for a nitrogen or oxygen generator.
    ANDROMEDA air compressors are powered simply
    by electricity; they are very simple devices, managed
    completely autonomously by a PLC with a touchscreen
    control panel that allows the operating parameters to be
    displayed and changed.
    ANDROMEDA air compressors operate completely
    autonomously, producing only what the machinery
    requires, without any waste.
    Both models integrate a storage tank to support peak
    consumptions..
    ANDROMEDA air compressors have redundant control
    and safety systems to ensure that the design parameters
    are not exceeded.

    Electrical control via pressure transducer
    Electromagnetic control via pressure switc
    Safety valve

    ANDROMEDA air compressors are available in two
    models with different outputs capable of producing air
    up to 9.5 bar.

    Data sheet

    ANDROMEDA 40ANDROMED 80
    DIMENSIOS440 x855x 760440 x855x 760
    WEIGHT (Kg) 75/10075/100
    FLOW ( Nit/min)

    PRESSURE (BAR)
    40

    8
    80

    8
    FLOW ( Nit/min)

    PRESSURE (BAR)
    55

    6
    110

    6
    POWER SUPPLY230/110 Vac230/110 Vac
    FREQUENCY
    FEEDING
    50/6050/60
    NOMINAL POWER (KW)1.01.80
    NOISE (dBA)<70<70
